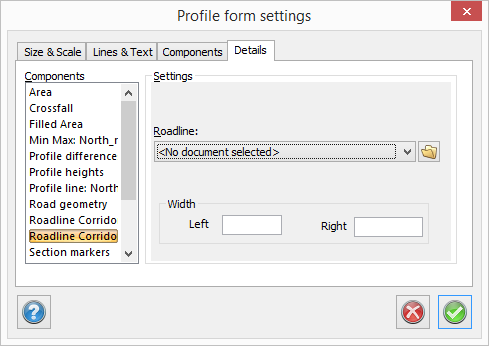

Details, Corridor

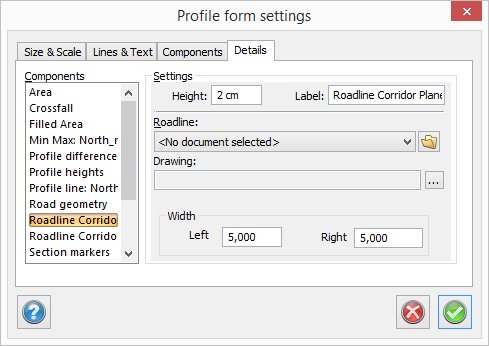

Details, Corridor Plan

Component Roadline Corridor Plan
Alignments plotted as a line with the surrounding heights and items reported. Surveyed object beside roadline, as a corridor around the alignments, shown in profile form.
